How long does a windlass install take?

Typically 1-2 days depending on the boat. Day one covers deck cutout, backing plate, wiring, and battery cable. Day two finishes install, testing, chain sizing, and sea-trial anchor deployment.

What size windlass do I need?

Sizing depends on boat displacement, ground tackle weight, and anchor type. General rule: windlass should pull 3-4 times the weight of anchor plus all chain. Undersized windlasses cook their motors within a season. We size properly during the quote.

My windlass trips the breaker. What causes that?

Usually one of three things: undersized battery cable (voltage drops under load and current spikes), tired batteries (cant deliver starting current), or failing motor (brushes worn short). We load-test to find which one.

Can I add a windlass to a boat that does not have one?

Yes, though the install is more involved. We check the anchor locker structure (may need reinforcement), deck thickness, battery proximity for cable runs, and bow roller alignment. Full install usually takes 1-2 days.

Boat Windlass Installation & Service in Miami

Name: Boat Repair Miami
Address: Miami, FL, US
Telephone: (305) 290-2701

Anchor windlass install, repair, and rope/chain rode service for Miami cruising and offshore boats

Request Service Call (305) 290-2701

The anchor windlass is one of those systems most Miami boaters ignore until it stops working. When it does stop, the options are an afternoon of manual anchor hauling or calling us. We install new windlasses on boats that never had one, upgrade undersized units, and repair the most common failures: motor brushes, gearboxes, deck switches, and breaker faults.

Windlass Brands We Service

Lewmar: V-series, Pro-series, Horizon, Sprint, and classic Lewmar units
Maxwell: HRC, VW, RC, and Freedom series
Lofrans: Cayman, Tigres, Royal, Falkon, and Project
Quick: Aleph, Hector, Dylan, Genius, and Prince
Muir, Powerwinch, and other specialty brands

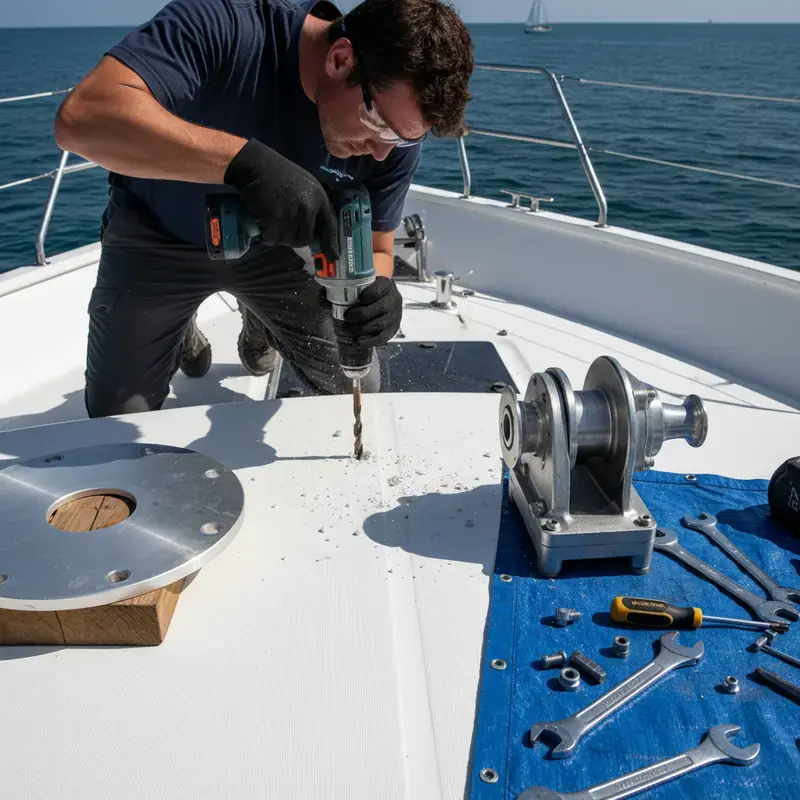

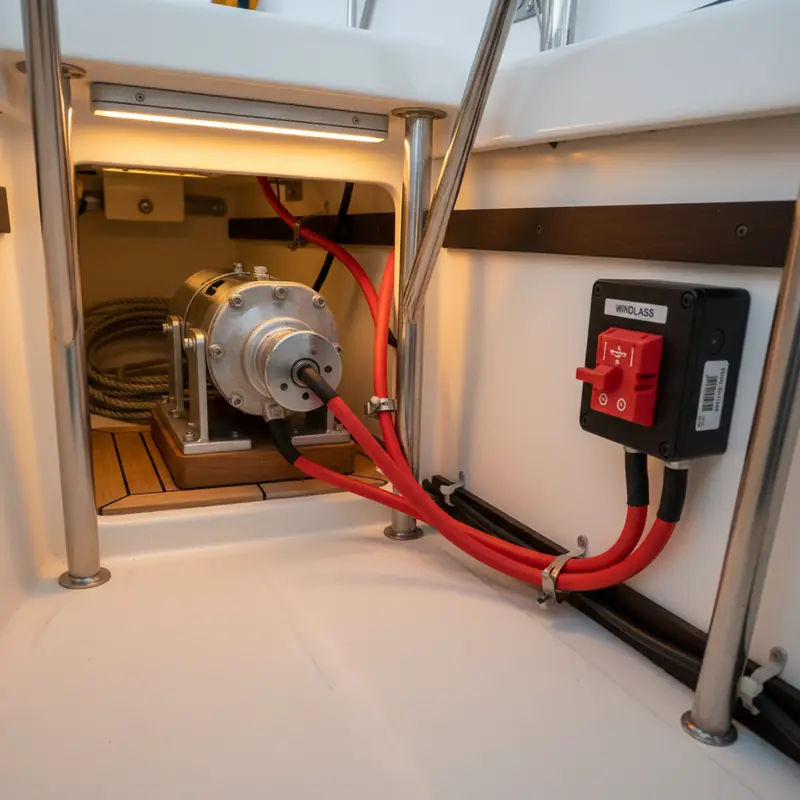

New Windlass Installation

Installing a windlass properly is more work than most owners realize. The install includes:

Sizing the windlass to boat displacement and ground tackle
Reinforcing the anchor locker structure if needed
Deck cutout and backing plate installation
Waterproof sealing at the deck penetration
Heavy-gauge battery cable from windlass to battery
Dedicated 40-150 amp breaker or solenoid
Up/down control switch wiring (helm, deck, remote)
Chain/rope rode sizing and splicing
Anchor selection and bow roller alignment

A proper install takes 1-2 days depending on boat layout. A rushed install creates problems that show up 6 months later when the windlass fails from undersized wire or the deck leaks around the motor base.

Windlass Repair

Most windlass repairs fall into a few common categories:

Motor wont run: Usually a corroded deck switch, failed solenoid, or tripped breaker. We diagnose the circuit before condemning the motor.
Motor runs but windlass wont move: Gearbox clutch slipping or gearbox internal damage. Clutch adjustment or rebuild.
Runs slowly or weakly: Battery voltage drop from undersized cable, tired battery, or worn motor brushes. Load-test under anchor pull.
Chain jams in the gypsy: Chain wear mismatched to gypsy, or a twisted chain below. Chain replacement or gypsy swap.
Water in the motor: Failed deck seal. Replace seals, dry the motor, test under load.

Anchor & Rode Selection

We help owners pick the right anchor for Miami bottoms (sand, grass, rock, and mixed). The right anchor holds well on all three common Biscayne Bay bottoms. We also size chain and rope rode properly: too little chain and the anchor wont set well; too much and the boat hunts at anchor. Proper spec is usually 3:1 chain to depth in protected anchorages and 7:1 total scope in storm conditions.

Remote Controls & Chain Counters

Modern windlasses support wireless remotes, helm up/down switches, and chain counters that show how much rode is out. We install and configure these so deploying and recovering the anchor is a single-button operation from the helm.

Ready to install or service a windlass? Call (305) 290-2701 or request service.

Know the Signs

Signs Your Windlass Needs Service

Motor runs but windlass does not pull

Windlass pulls slowly under load

Deck switch corroded or intermittent

Breaker trips during normal operation

Chain jams or hops on the gypsy

Water visible around motor mount

Solenoid clicks but motor silent

Remote control dropouts

Our Process

Our Windlass Service Process

Dockside Inspection

Test motor, solenoid, breaker, switches, and deck seal. Identify actual failure point.

Written Estimate

Quote for repair, rebuild, or replacement. Free estimate, no obligation.

Service or Install

Most repairs happen at your dock. New installs take 1-2 days depending on boat.

Anchor Test

Deploy and retrieve anchor under load to verify windlass, chain, and remote all work correctly.

Miami Windlass Specialists

Anchoring Miami Bottoms Demands Proper Gear

Miami and Biscayne Bay anchorages mix sand, grass, and rock bottoms. Some spots hold great, some are dragging nightmares. The right anchor and properly sized rode matter more here than in softer cruising grounds. Our team knows which anchors hold the popular Miami spots (Stiltsville, Haulover Sandbar, No Name Harbor) and sizes windlasses correctly for the ground tackle your boat actually needs.
